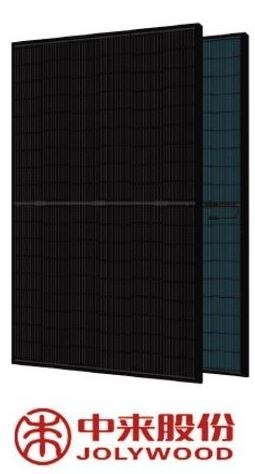

JOLYWOOD JW-HD-108N-500W R2 BIFACIAL Full black (N-type)

Jolywood JW-HD108N-R2-500W Full Black Bifacial is a state-of-the-art photovoltaic module made with N-type TOPCon technology, offering superior quality, longevity and performance. Thanks to its bifacial (double-sided) design, the module can generate additional energy through reflected light from the back side, allowing it to increase overall production by up to 10-30%, depending on mounting conditions.

Specifications:
Power: 500 W
Cells: N-type TOPCon, monocrystalline, 16BB
Number of cells: 108 (108 [2×54] array)
Frame (color): Black (Full Black)
Dimensions: 1960 × 1134 × 30 mm
Weight: 27.3 kg
Junction box: IP68, 3-diode, max current 25 A
Pallet (pcs.): 37 pcs. per pallet
Warranty: 25 years product warranty, 30 years linear performance warranty

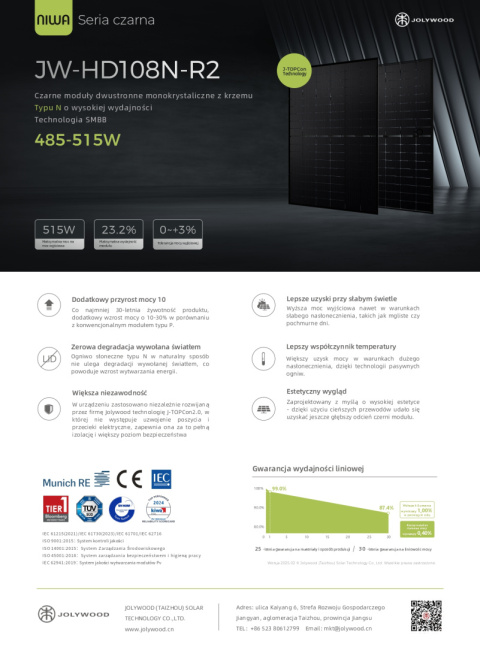

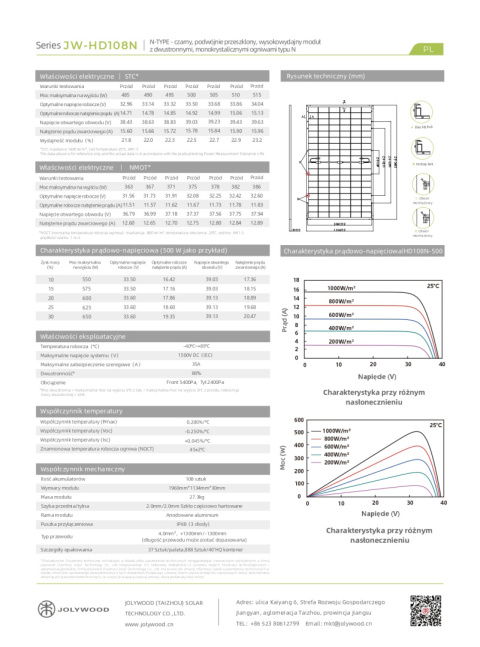

datasheet

Terms of warranty

Installation Manual

Certificate IEC 62716 Ammonia

Certificate IEC 61701 salt mist
