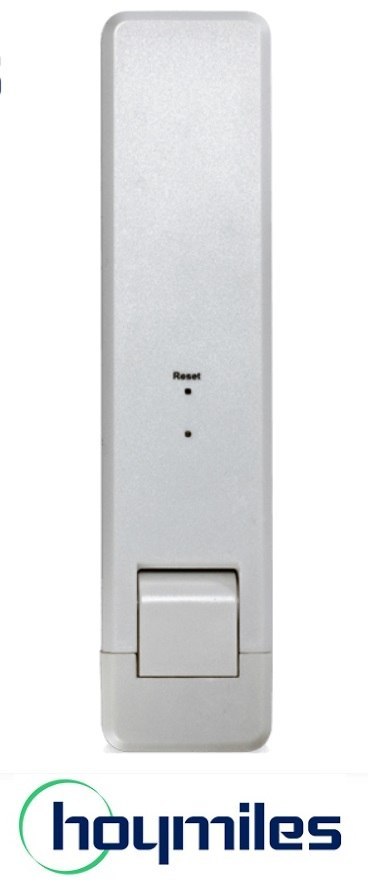

HOYMILES DTU-WLite-S monitoring module (for 4 photovoltaic modules)

The module is used for wireless WiFi communication at 1 GHz with Hoymiles HMS series microinverters to monitor the system and the operation of photovoltaic panels. The WLite-S version allows monitoring up to 4 photovoltaic modules. Users can conveniently read module-level data and alarms, perform remote operations and maintenance of the PV system from anywhere and at any time - thanks to S-Miles Cloud.

Without AC adapter

Product distinguishing features:

    Module-level monitoring and data collection for up to 4 solar panels
    Ready to use, literally plug and play
    Real-time microwave data and alarms in S-Miles Toolkit
    Remote system management via S-Miles Cloud
    Dimensions : 143 × 33 × 12.5 mm. Weight : 0.1 kg . 1.0 W / Max. 5.0 W
    Monitoring power: 4 PV modules
     Installation : Direct connection (USB port).
