Felicity Hybrid inverter IVGM40KHP3G2 3-phase (high voltage)

Model IVGM40KHP3G2 is a hybrid solar inverter from the IVGM series, manufactured by Felicitysolar. This device is used in photovoltaic systems with energy storage (hybrid), combining the functions of an inverter, solar charger, and battery charger, allowing flexible energy management under various operating conditions.

Key features

• Output power: 40 kW AC nominal – designed for medium PV installations (e.g., medium-sized commercial buildings, warehouses, farms).

• Type: Three-phase hybrid inverter – can operate in on-grid, off-grid, or UPS (backup) modes.

• MPPT technology: Multiple independent Maximum Power Point Tracking (MPPT) channels optimize energy yield from PV modules.

• Communication: Built-in Wi-Fi for remote monitoring and system configuration via app/PC.

• Protection class: IP65, ensuring resistance to external conditions (dust, moisture).

• Battery voltage range: typically wide allowable range (e.g., 160–800 V DC).

• Display: LCD panel for easy reading of parameters and system configuration.

Applications
IVGM40KHP3G2 is ideal for commercial and industrial PV installations – where stable three-phase power, battery energy storage, generator integration, and flexible energy source prioritization are needed (e.g., PV first, then battery, lastly the grid).

Technological advantages

• Three-phase pure sine wave output (230 V/400 V) – improves compatibility with industrial loads.

• Multi-channel MPPT – better energy yield from modules with different orientations/parameters.

• Flexible expansion – parallel operation of multiple units is possible (system power increase).

• Remote monitoring and IoT platform management.

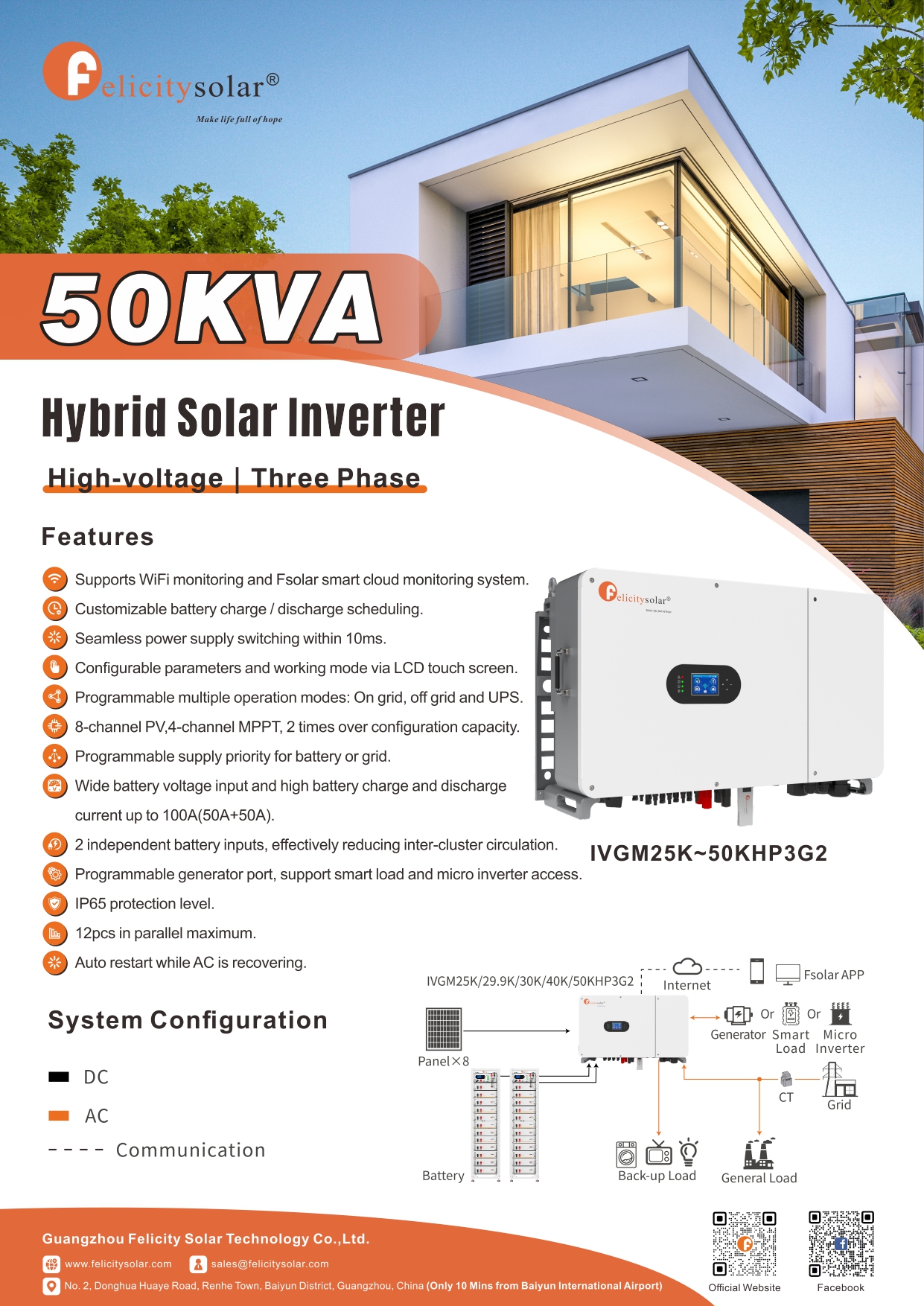

Załącznik 1

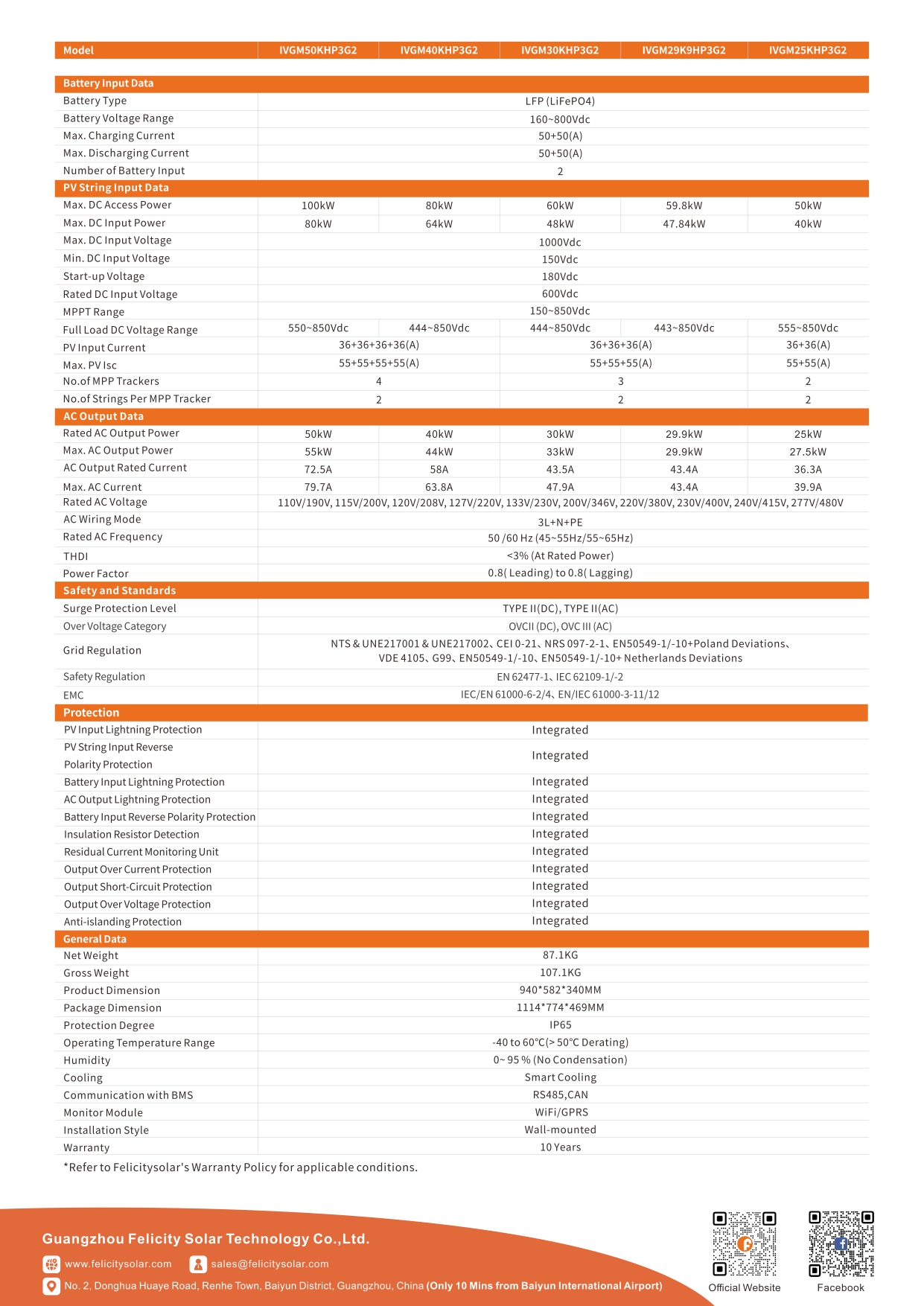

Załącznik 2
