DEYE Smart Transmitter SUN-SMART-TX01

SUN-SMART-TX01

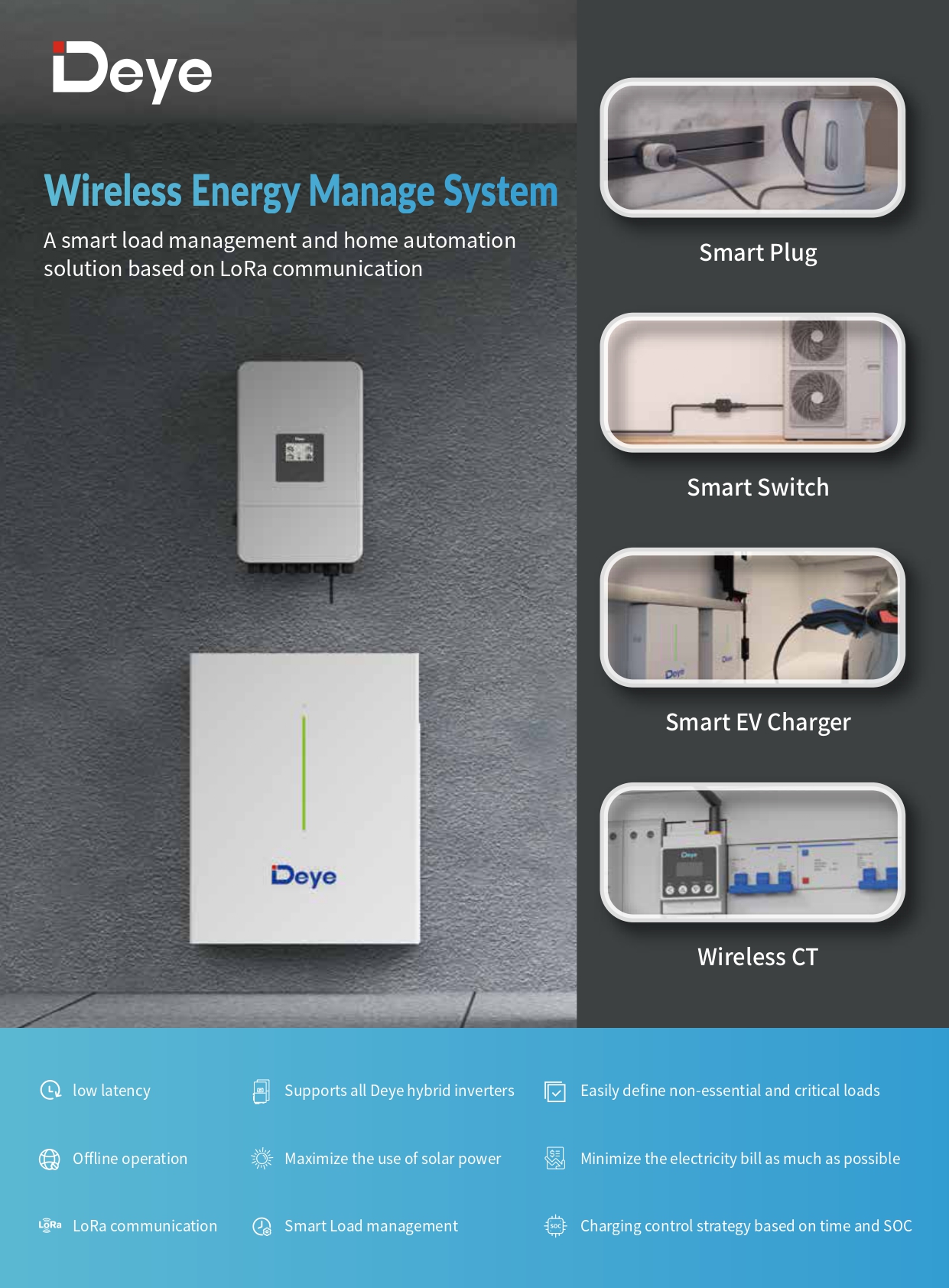

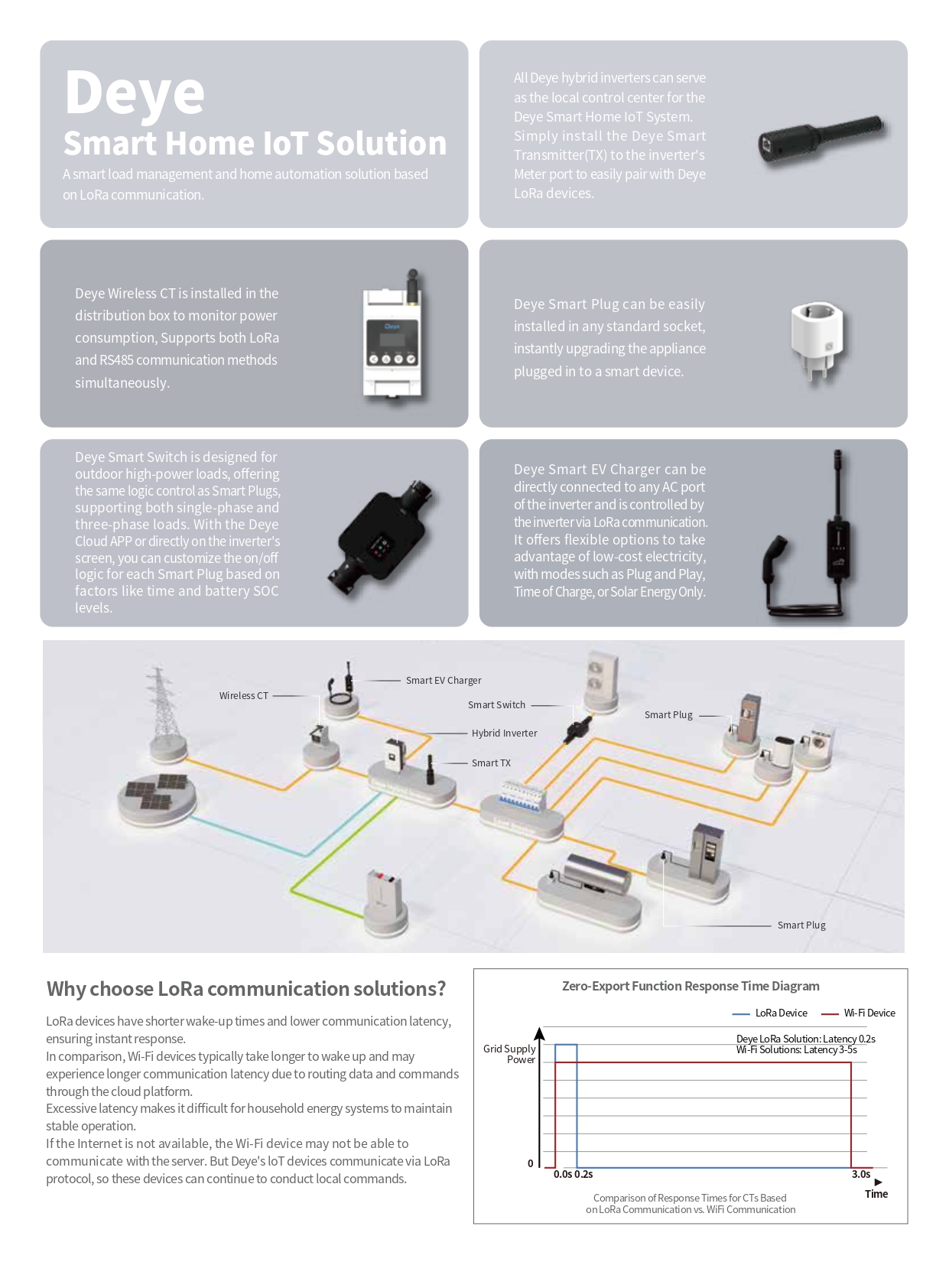

TX01 is a “smart transmitter” — a module that connects to the Deye inverter and enables communication with other LoRa devices (e.g., smart meters, smart sockets, switches, EV chargers). This allows the entire installation — the inverter and peripheral devices — to become part of an intelligent energy management network. You can then define automatic rules: priority / lower-priority loads, EV charging control, device management depending on PV production, battery state of charge, or time of day.
The system operates locally via LoRa, meaning no internet connection is required, ensuring stability and independence from external networks.

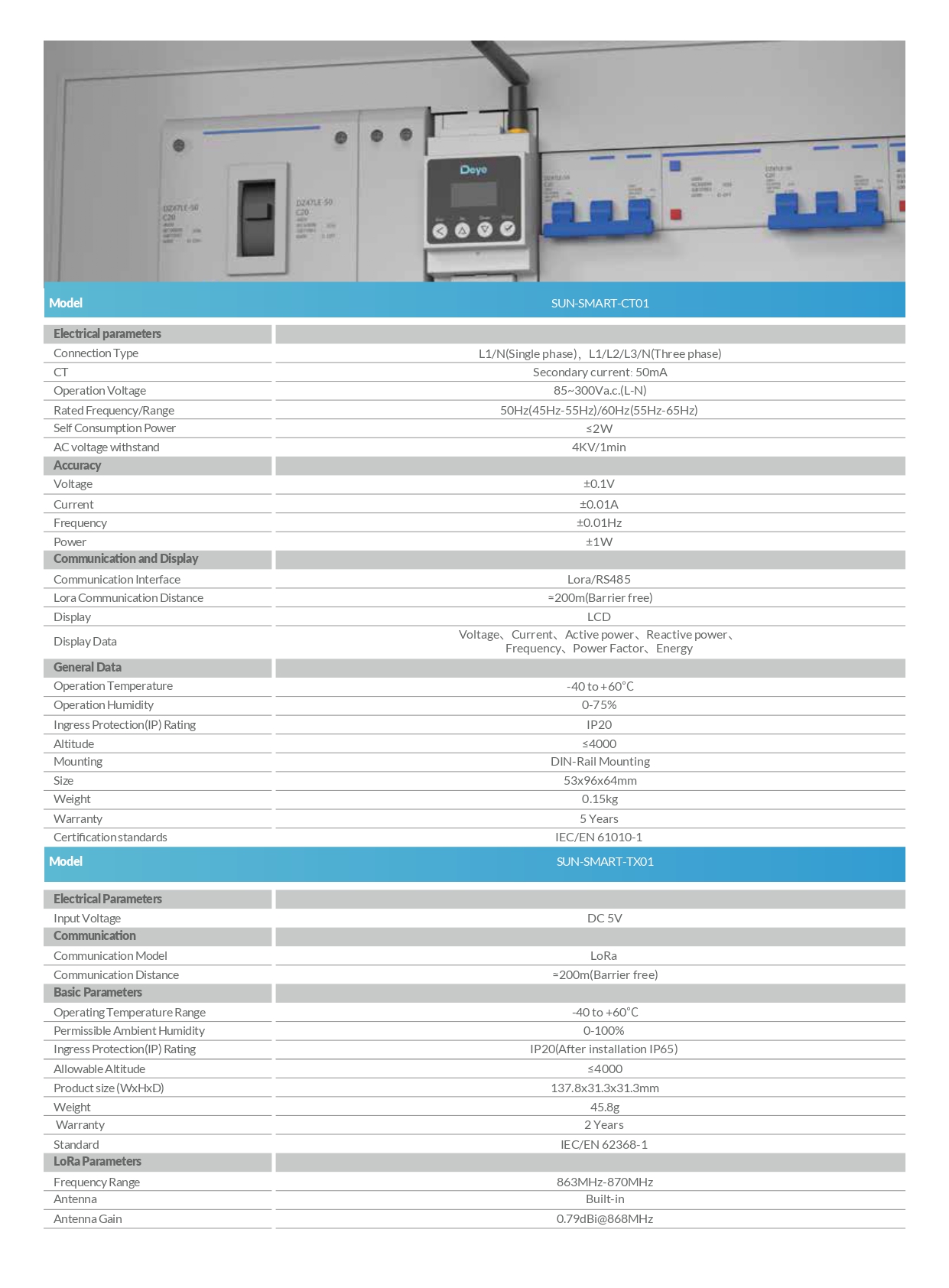

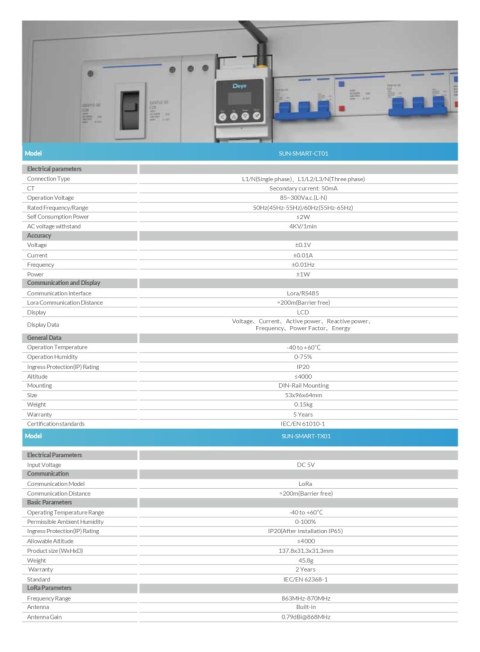

Basic technical data:

• Communication: LoRa
• Frequency: 863–870 MHz
• Range: approx. 200 m (open area)
• Power supply: DC 5 V
• Dimensions: approx. 137.8 × 31.3 × 31.3 mm
• Weight: 46 g
• Operating temperature: –40 °C to +60 °C
• Protection rating: IP20 (IP65 after installation)
