DEYE Switch SUN-SMART-SWITCH01P3

SUN-SMART-SWITCH01P3

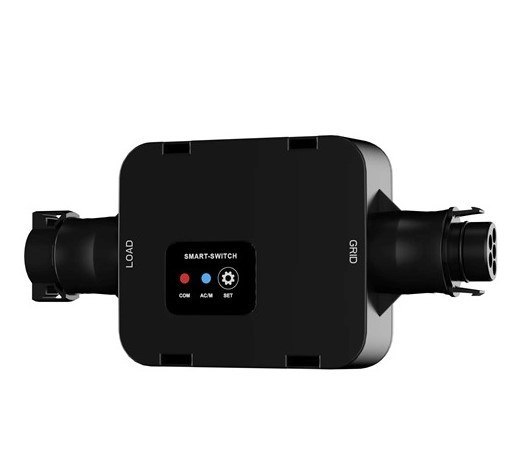

This is a smart switch designed to handle high-power loads - it is suitable for both single-phase and three-phase power supply.

It can work with Deye inverters / solar installations - it is used to manage loads (e.g. maintaining power supply, controlling receivers, charging, etc.).

Communication takes place via LoRa - which means that the device can be controlled remotely (e.g. via an application or a control panel), with a range of up to ~200 m (in the field without any obstacles).

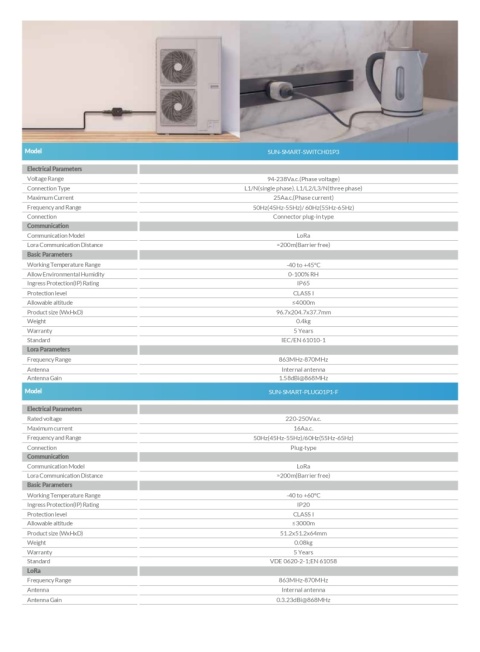

Technical parameters:

• Voltage range: 94-238 V AC (phase voltage).
• Connection type: L1/N (single-phase) or L1/L2/L3/N (three-phase)
• Maximum current: 25 A AC (per phase).
• Frequency: 50 Hz (45–55 Hz) or 60 Hz (55–65 Hz).
• Communication: LoRa, range ~200 m in the field.
• Protection rating: IP65 -
• Operating temperature: -40 °C to +45 °C.
• Weight: approx. 0.4 kg
• Installation: plug-in
