DEYE PCS Module SUN-125K-PCSL01HP3

The module is part of Deye's C&I ESS (Commercial & Industrial Energy Storage System) solution, which includes a range of PCS and MPPT modules, STS modules, and BOS-B batteries. This advanced and modular solution allows for power scaling from 100 kW to 2.5 MW.
Technical data
Model: SUN-125K-PCSL01HP3 (125 kW PCS Module)

DC power supply (from battery):

• Voltage range: 630–1000 V.
• Maximum charging/discharging current: 220 A

AC (input/output):
Active power: 125 kW.

• Rated AC current: approx. 189.4 A / 181.2 A (depending on units)
• Connection: 3L + N + PE
• Overload capacity: 110% load, 170% instantaneous maximum load

Efficiency:

• Maximum efficiency: 98.5%.

Scalability

• Can be operated in parallel connection with up to 20 units, achieving a power output of up to 2–2.5 MW

Advanced EMS features:

• Supports features such as zero export, peak shaving, charging/discharging schedules (time-of-use), as well as local and remote control via a color touch screen

Durability and protection:

• Protection class: IP65 – suitable for harsh environmental conditions
  This module is compatible with Li-ion batteries and automatically adapts the charging strategy to the BMS (Self-adaption to BMS)

AC parameters:

•  Output voltage: 220/380 V, 230/400 V, frequency ranges: 50 Hz (45–55) and 60 Hz (55–65)
• Power factor adjustable from -1 to 1 (similar to 100 kW modules)
• THDi: < 3%; DC injection current: < 0.5% I?

ESS system scalability:

• One STS module can support up to five PCS modules, simplifying design and installation

Operating environment and protection:

• Switching time to off-grid/diesel operation: < 10 ms
•  Operating temperature range: –25 °C to +60 °C (with power reduction above 45 °C)
• Relative humidity: 0–95 %, altitude up to 4000 m above sea level
• Protections: DC reverse polarity, AC overload, overvoltage protection, short circuit, leakage and ground fault monitoring, optional AFCI (arc fault detector), RCD, and SPD in TYPE II class – very wide range of protections

Physical dimensions:

• PCS module: 543 × 310 × 775 mm, IP20 protection (module only)

We are an authorized distributor of Deye

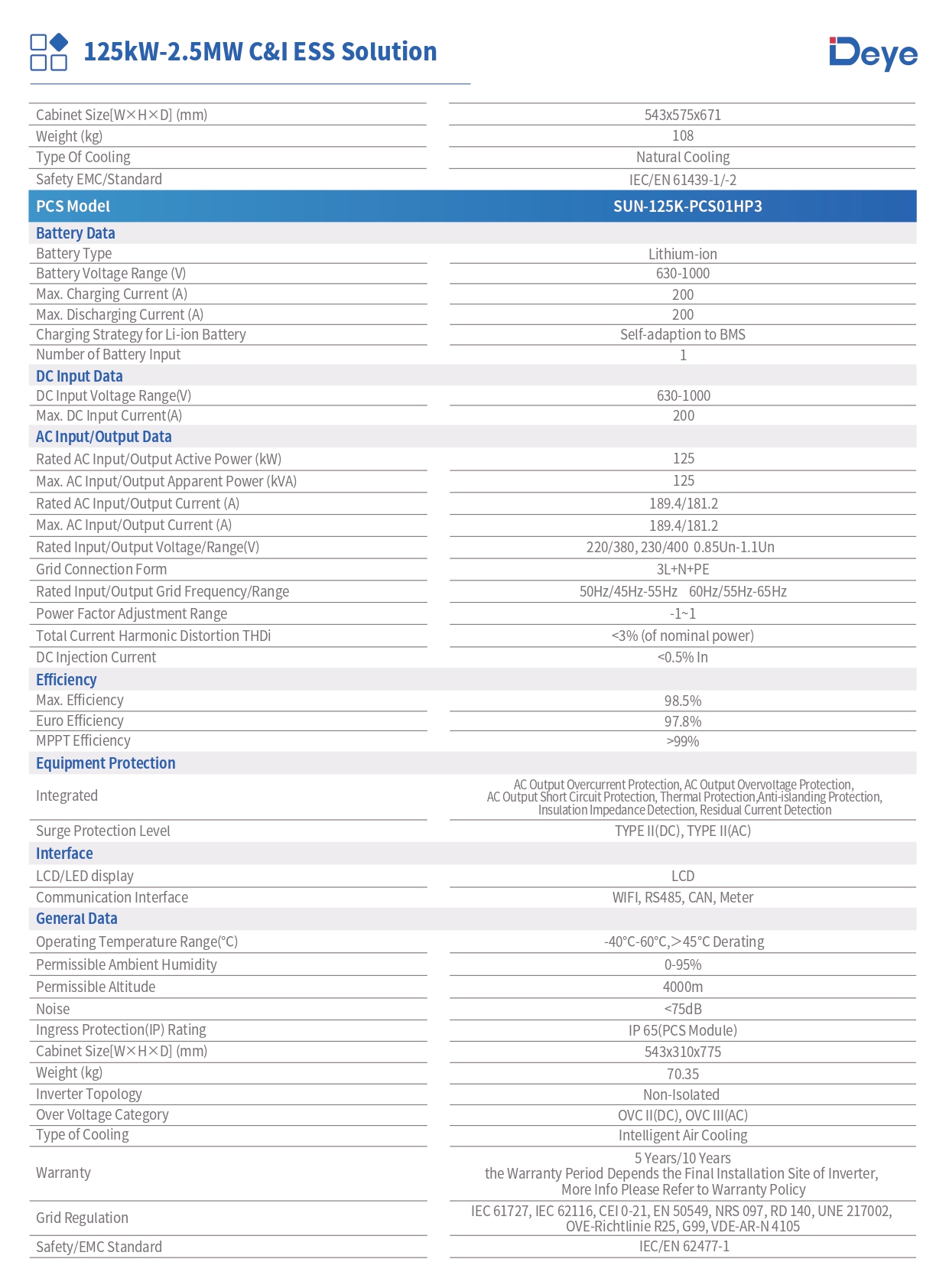

Załącznik 1

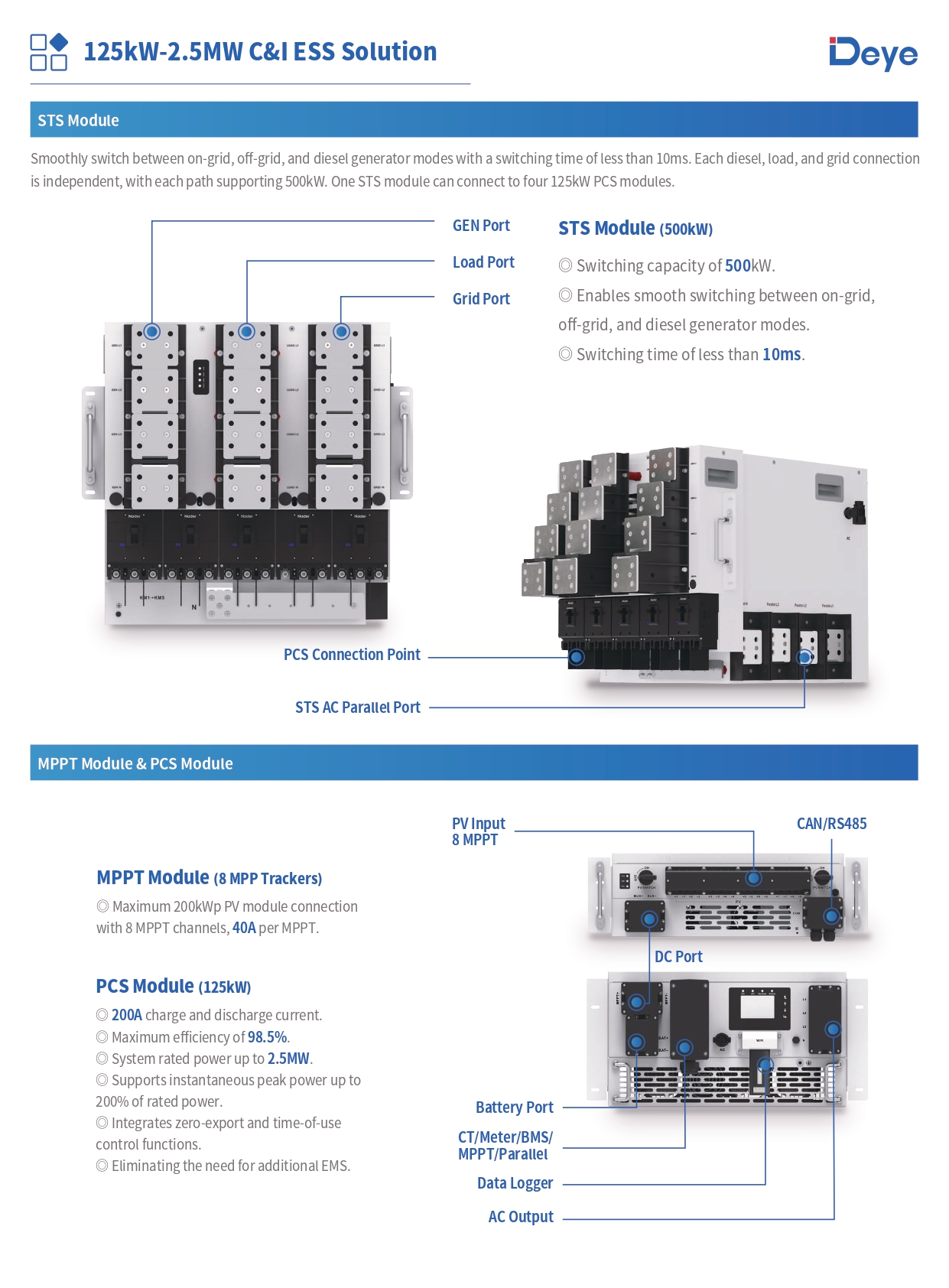

Załącznik 2
