DEYE MPPT Module SUN-MPPT-L01-EU-AM8

The SUN-MPPT-L01-EU-AM8 module is a high-performance MPPT solution, ideal for large PV installations in ESS systems – thanks to 8 independent trackers, a wide voltage range, and extremely high efficiency, it enables maximum utilization of PV power. In addition, its reinforced IP65 design, surge protection, and wide operating temperature range ensure performance and reliability in a variety of operating conditions.

Technical data

PV input:

• Max. PV power: 200 kW
• MPPT voltage range: 180–850 V (full load)
• Start-up voltage: 200 V (low sunlight compensation)
• Max. input voltage: 1000 V
• Number of MPPT trackers: 8 independent, each with 2 inputs
• Max. operating current: 8 × 40 A = 320 A
• Max. short-circuit current: 8 × 60 A = 480 A

Energy efficiency:

• Peak conversion efficiency: > 99%
• MPPT tracking efficiency: > 99.9%

Protection and safety:

• Polarity reversal protection, surge protection (SPD II)
• Optional arc fault protection (AFCI) and insulation monitoring and anti-PID functions
• Protection rating: IP65 – effective protection against dust and moisture

Construction and cooling:

• Housing: aluminum steel
• Dimensions: 543 × 197.8 × 700 mm
• Weight: 41.7 kg
• Cooling: ventilation, intelligent
• Operating temperature range: −25 °C to +60 °C

We are an authorized distributor of Deye

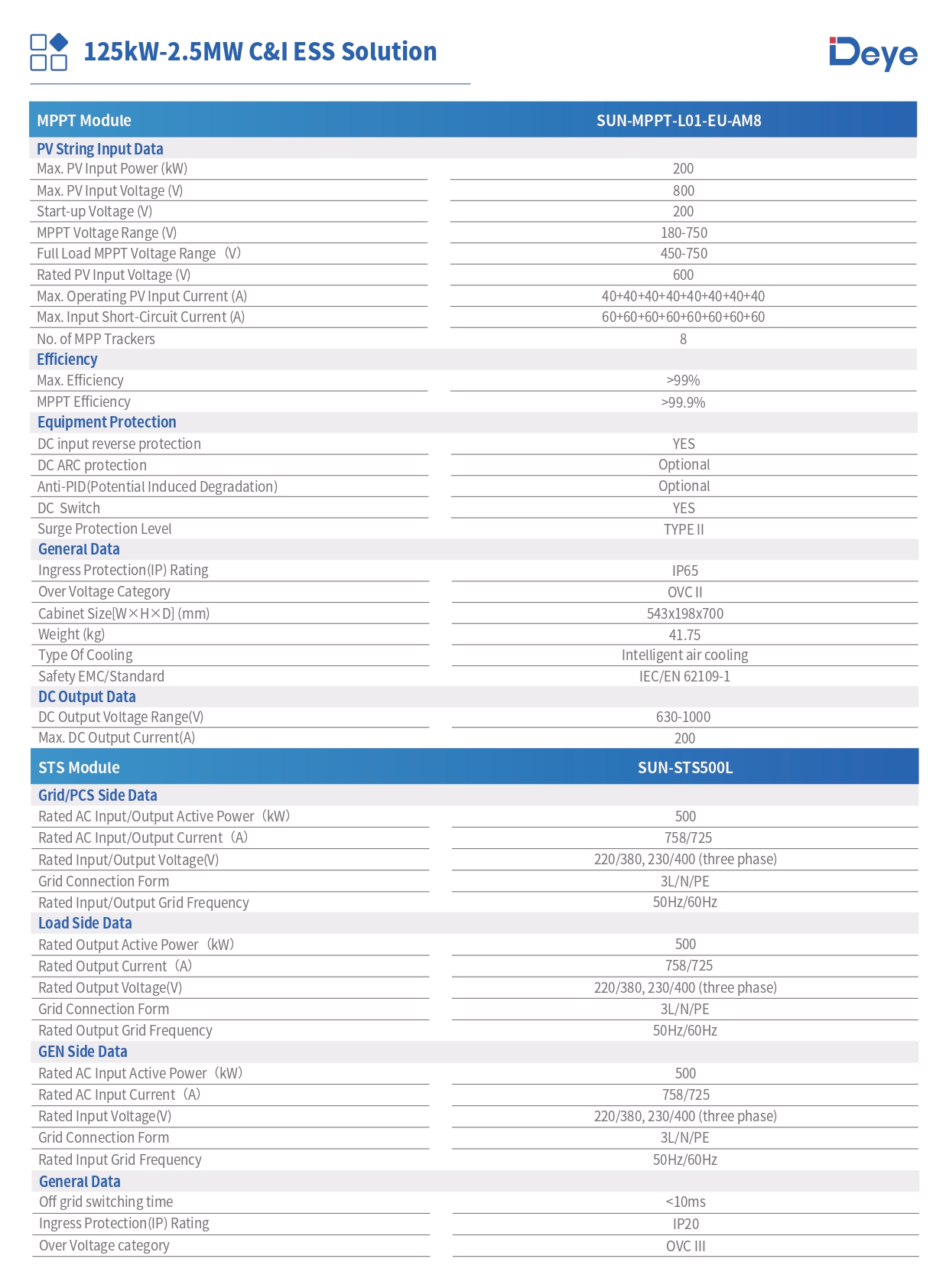

Załącznik 1

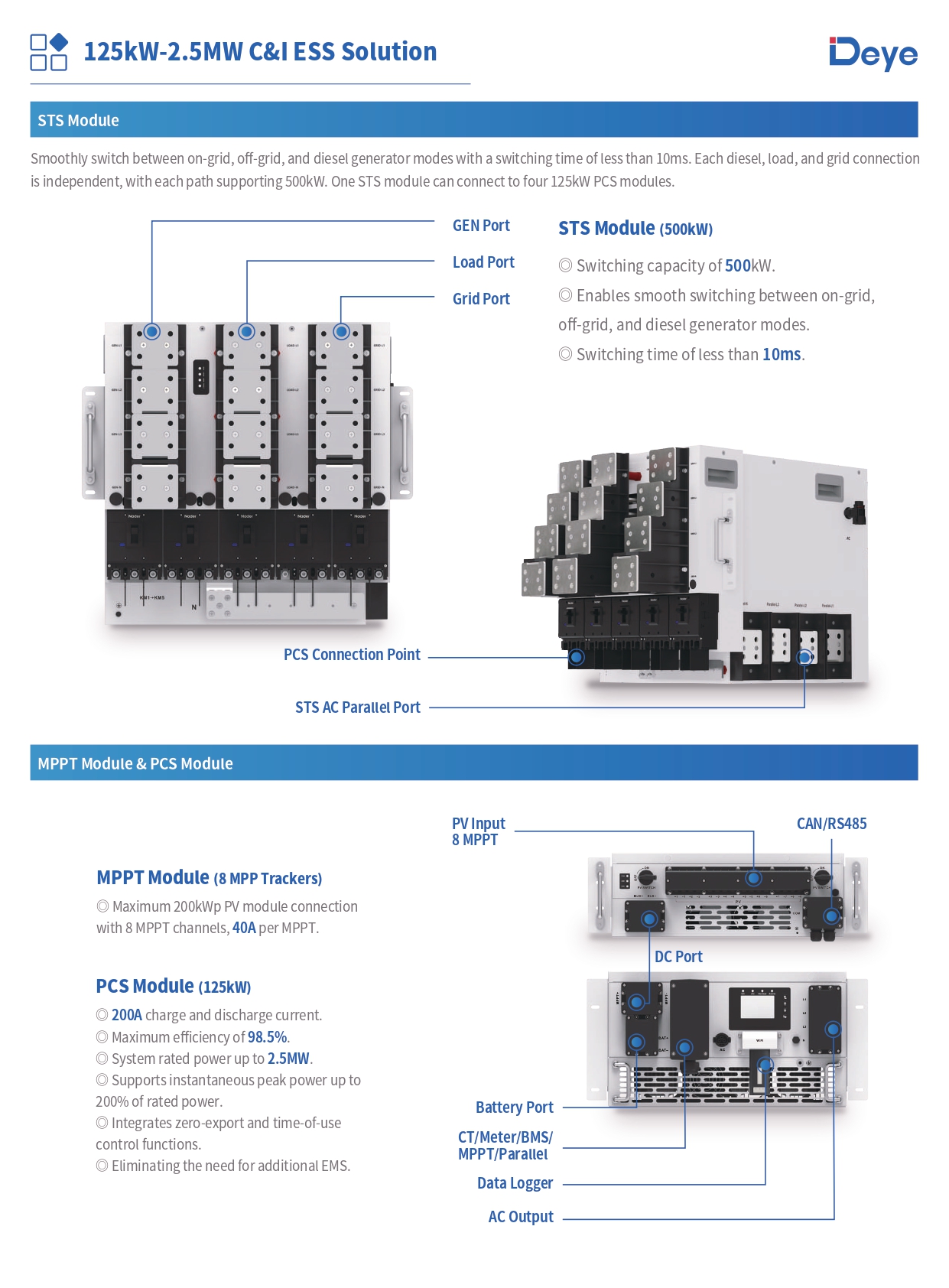

Załącznik 2
